Descripción
Nano 6.7 Quick-Clac D.40 Wirquin drain with non-return system with silicone membrane, guarantee without odors and without drainage. Saving time and space. Easy and fast maintenance.
Time savings: Quick assembly without tools
Quick Safe Function:
- Nut attached to siphon for a ¼ turn connection
- Molded gasket to siphon for maximum purpose
- Outlet ø32 mm or outlet ø40 mm
Unique siphon connection concept
- Convenient one-hand installation
360º orientation and ± 4° inclination
- Compensates for misalignment with the tube
- Removes pressure on the evacuation tube
Hygiene: Quick and easy maintenance
"Top Clean" function
- Removable siphon on top
Anti-return system with silicone membrane
- Replaces hydraulic siphoning with unmatched presentations
- 100% odor-free guarantee
- 100% guarantee without dephonation
Space saving: 3 times less bulky than a classic drain
Ultra-compact
- Only 6.7cm
- The siphon disappears completely
- And frees up space under the sink.

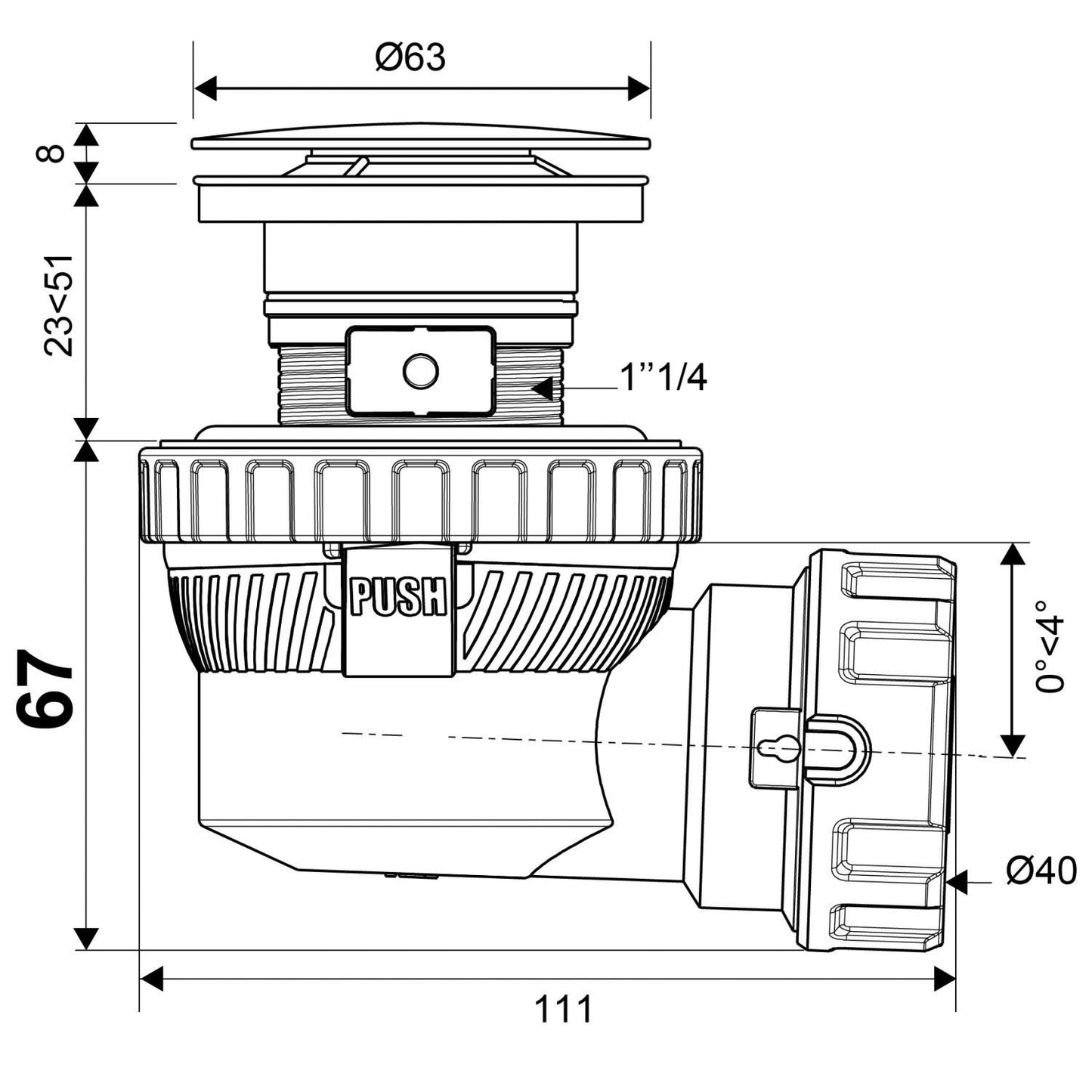

SPECIFICATIONS
- U/C: 18
- Inlet: 1”¼
- Basin thickness: 23 < 51 mm
- Height below sink/bidet: 67 mm
- Plug material: Brass
- Closing system: Quick-clac
