Descripción

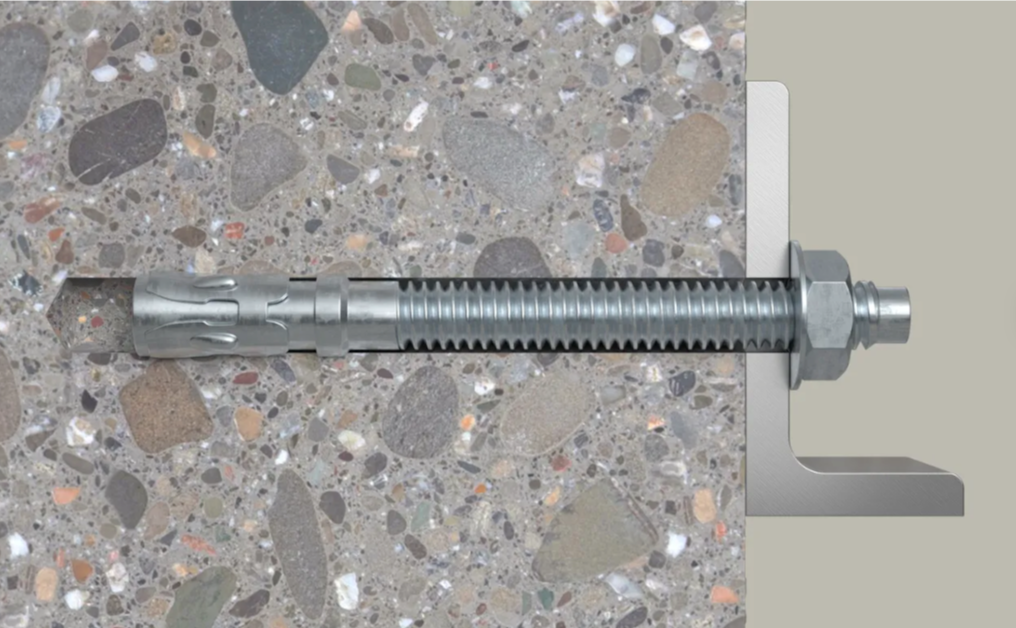

The Fischer FWA metric is a wedge expansion bolt anchor, designed for fastenings in compressed concrete without the need for ETA approval, aimed at medium and heavy-load applications. Its hammer and torque expansion system allows for quick and secure installation in metal and auxiliary structures.

FEATURES

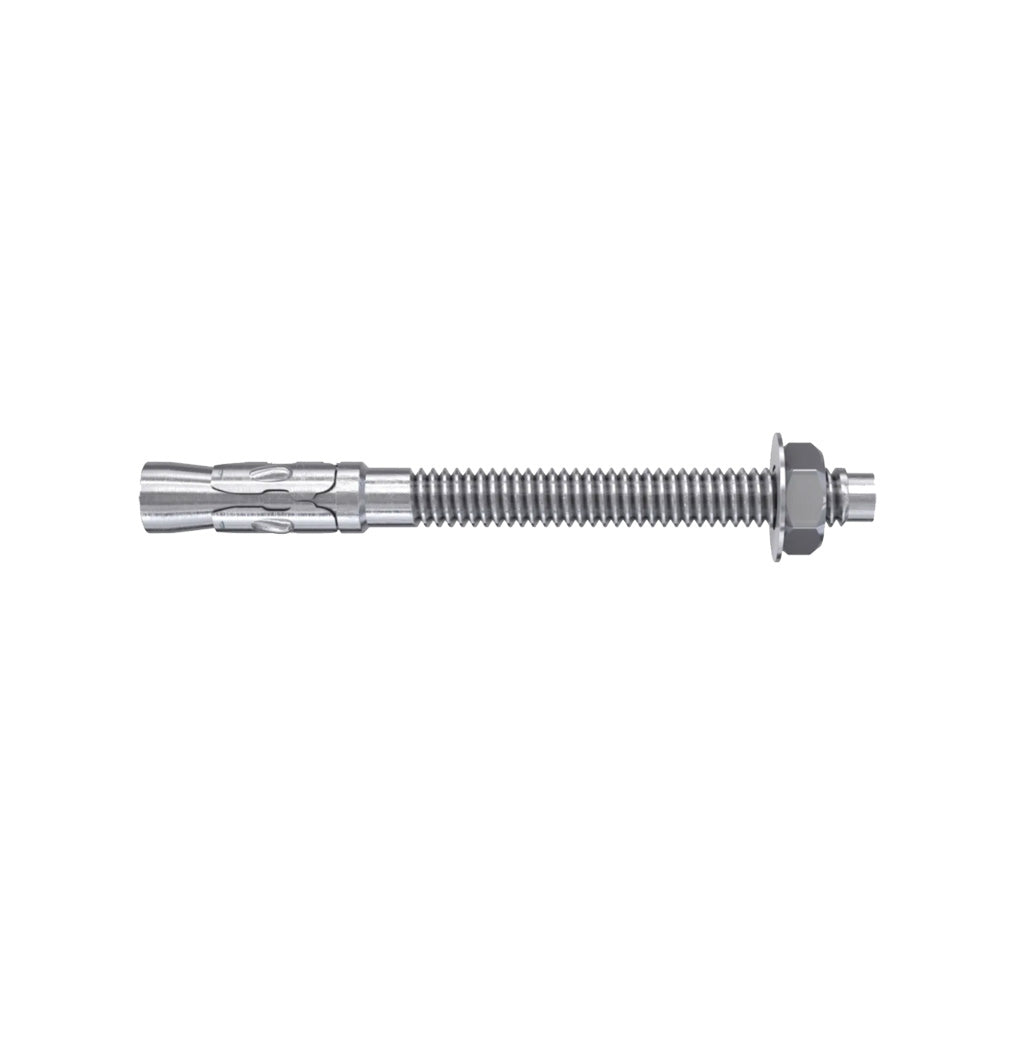

  • Wedge anchor (cone expansion) type bolt anchor
  • Made of galvanized steel
  • Through-hole or pre-positioned installation
  • Expansion by tightening the nut (internal cone)
  • Impact zone that protects the thread during installation
  • Option of two anchoring depths (standard and reduced) to adapt load and assembly speed
  • Economical solution for compressed concrete without specific structural certification
  • Main advantages: The standard FWA galvanized steel bolt anchor offers optimal performance with a very wide range. The long threaded section allows for through-hole installation using a nut and locknut.
  • Main applications: for fixing heavy loads in concrete.
  • Technology: the smooth impact zone on the outside of the bolt to prevent damage to the thread during initial hammer-driven insertion into the drill hole

SPECIFICATIONS

Size Diameter Length Box
8 x 65 8 65 mm 50 pcs.
8 x 80 8 80 mm 50 pcs.
8 x 95 8 95 mm 50 pcs.
10 x 80 10 80 mm 50 pcs.
10 x 95 10 95 mm 50 pcs.
10 x 115 10 115 mm 25 pcs.
12 x 100 12 100 mm 25 pcs.
12 x 120 12 120 mm 25 pcs.
12 x 150 12 150 mm 25 pcs.
